High Speed 24V Brushless DC Motor 36mm BLDC Motor 12V for Global B2B Buyers

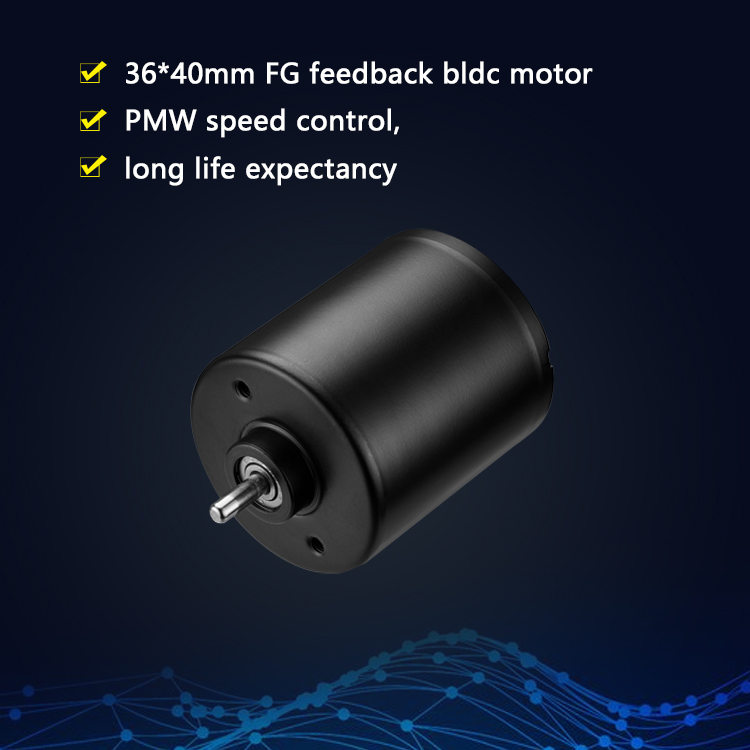

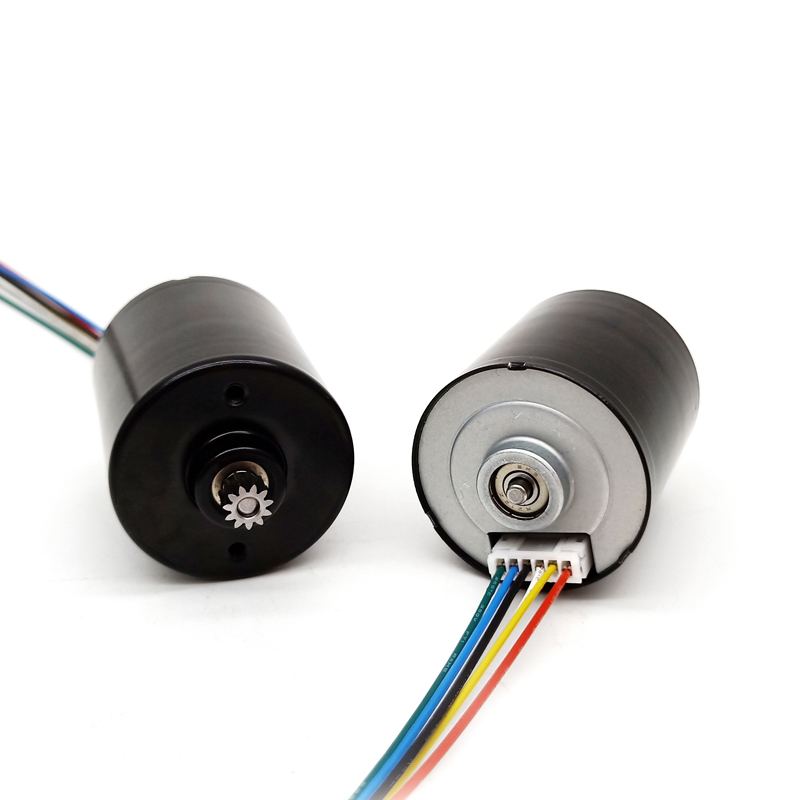

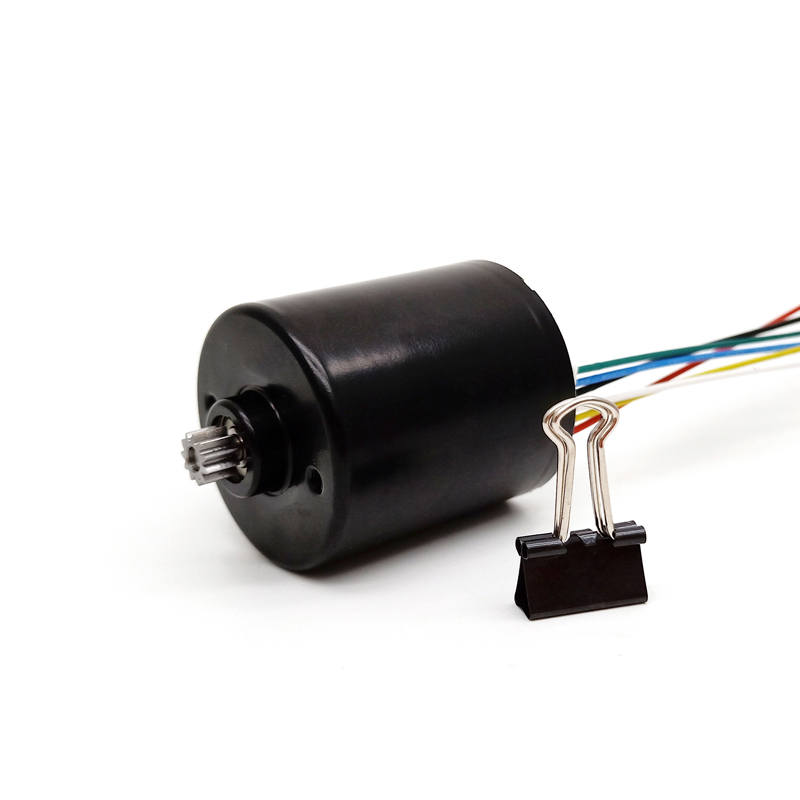

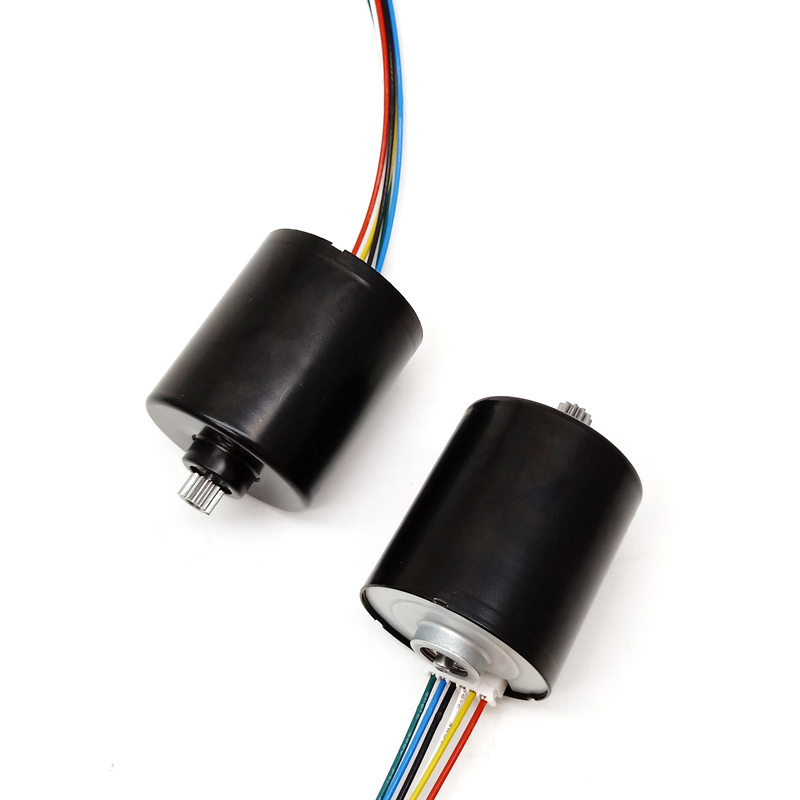

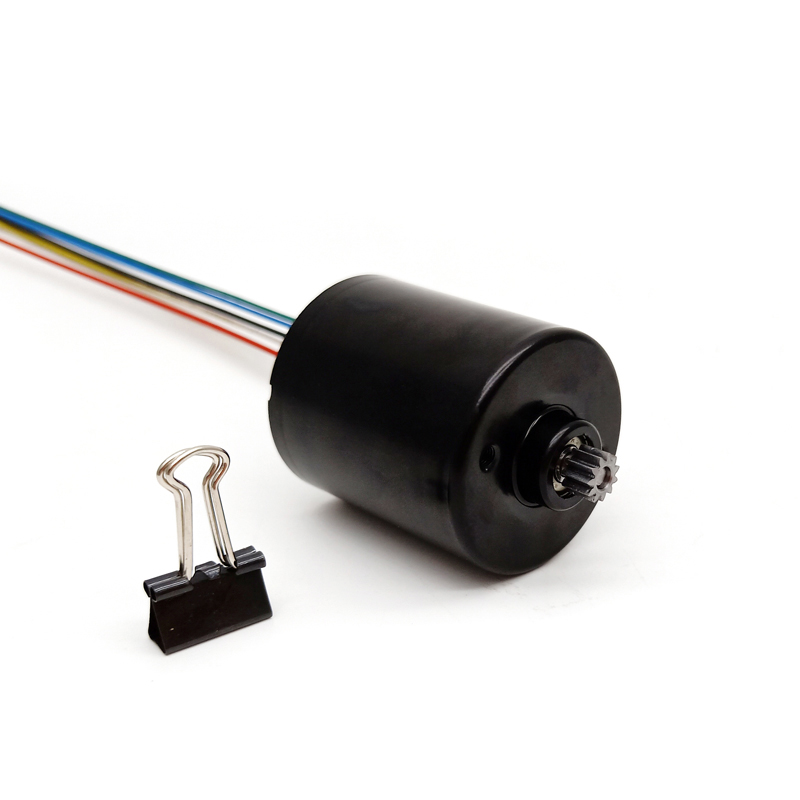

24v High Speed BLDC Motor 36mm Brushless DC Motor 12v

Product Application: Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

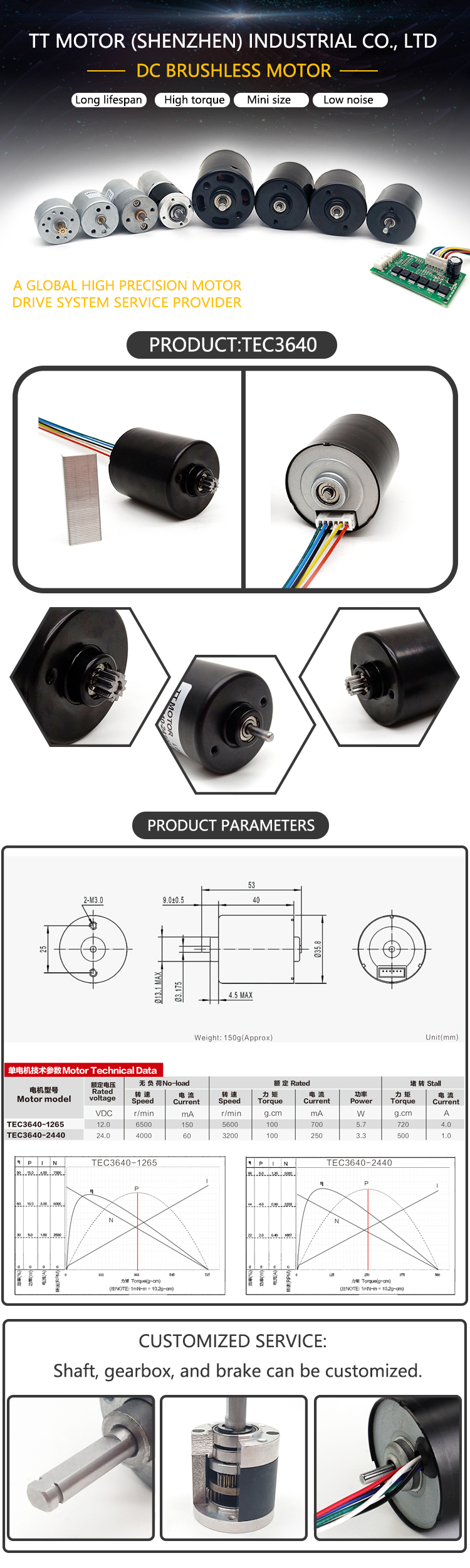

Model: Motor TEC3640 Specifications

Model	Voltage & Speed Info	Torque Details	Current Details
TFC3640-1250	Rated voltage: 12VDC No-load speed: 5000r/min	Rated torque: 150g.cm Stall torque: 600g.cm	Rated speed: 4000r/min Output power: 6.2W
	No-load current: 750mA \| Rated current: 1000mA \| Stall current: 2.5A
	TFC3640-1233	Rated voltage: 12VDC No-load speed: 3300r/min	Rated torque: 250g.cm Stall torque: 880g.cm	Rated speed: 2400r/min Output power: 6.2W
No-load current: 250mA \| Rated current: 1000mA \| Stall current: 2.5A
TFC3640-2433		Rated voltage: 24VDC No-load speed: 3300r/min	Rated torque: 300g.cm Stall torque: 1650g.cm	Rated speed: 2400r/min Output power: 7.4W
		No-load current: 130mA \| Rated current: 500mA \| Stall current: 3.0A

Main Features

36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox

Applications & Usages

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Others Application Range

Industry	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera & Optical	Video	Cameras	Projectors	-
Lawn & Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Enterprise Profile

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.

Major Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing details.

Shipping Delivery Time

DHL 3-5 working days

UPS & TNT 5-7 working days

FedEx 7-9 working days

EMS 12-15 working days

* China Post & Sea Shipping: Depends on destination country.

Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

Frequently Asked Questions

Q1 How to order?

Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q2 How about the Sample order?

Samples are available for you. Please contact us for details. Once we charge you the sample fee, please rest assured that it will be refunded when you place a formal order.

Q3 Which shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping are available. Other shipping ways are also supported; please contact us if you need delivery by alternative methods.

Q4 How long is the delivery [producing] and shipping time?

Delivery time depends on the quantity you order. Usually, production takes 15-25 working days.

Q5 My package has missing products. What can I do?

Please contact our support team, and we will confirm your order along with the package contents. We apologize for any inconvenience caused.

Q6 How to confirm the payment?

We accept payment by T/T and PayPal. Other payment methods can also be accepted; please contact us before using other methods. A 30-50% deposit is available, with the remaining balance to be paid before shipping.
