RACB Motor
RACB Motor
| Model Variant | Rated Voltage | Rated Speed | Rated Torque | No-load Speed | Stall Torque |
|---|---|---|---|---|---|
| TRK-370CA-22170 | 6VDC | 4800 r/min | 24 g.cm | 5600 r/min | 186 g.cm |
| TRK-370CA-15360 | 12VDC | 4800 r/min | 24 g.cm | 5600 r/min | 186 g.cm |
| TRK-370CA-12560 | 12VDC | 3000 r/min | 20 g.cm | 3700 r/min | 125 g.cm |
| Reduction Ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Gearbox Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load Speed (rpm) | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated Torque (kg.cm) | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |

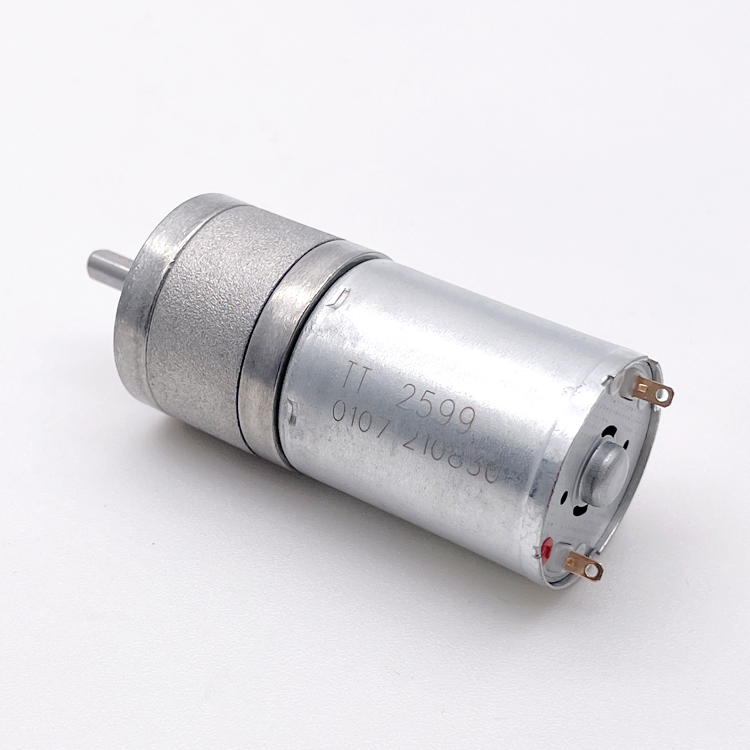

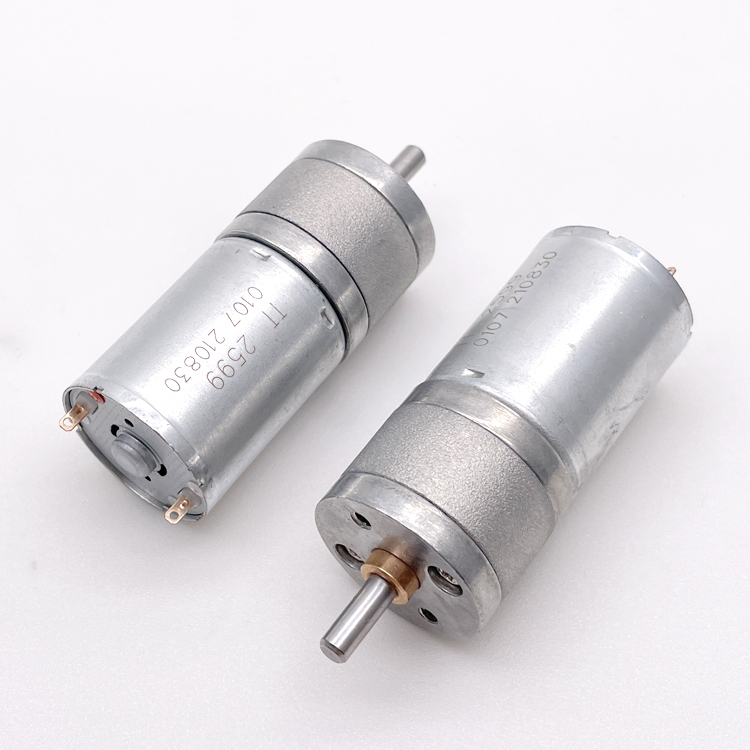

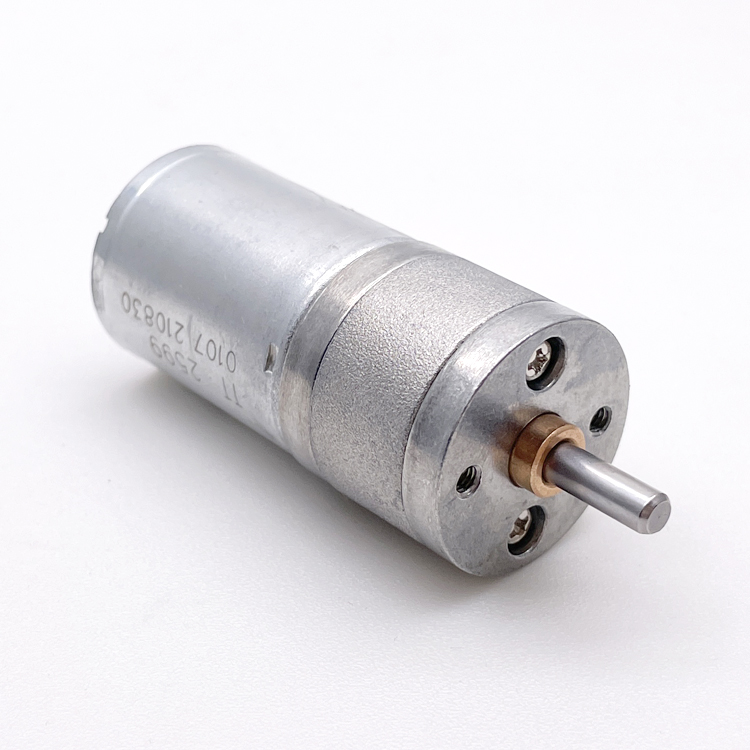

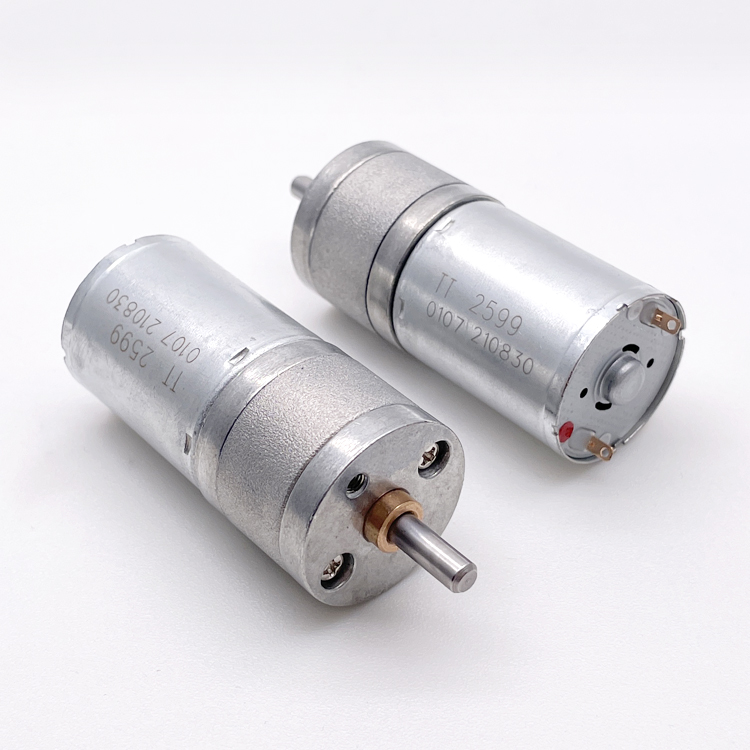

A: It combines a compact 25mm gearbox with a powerful 370 DC motor, providing high torque and reliable performance in a small form factor.

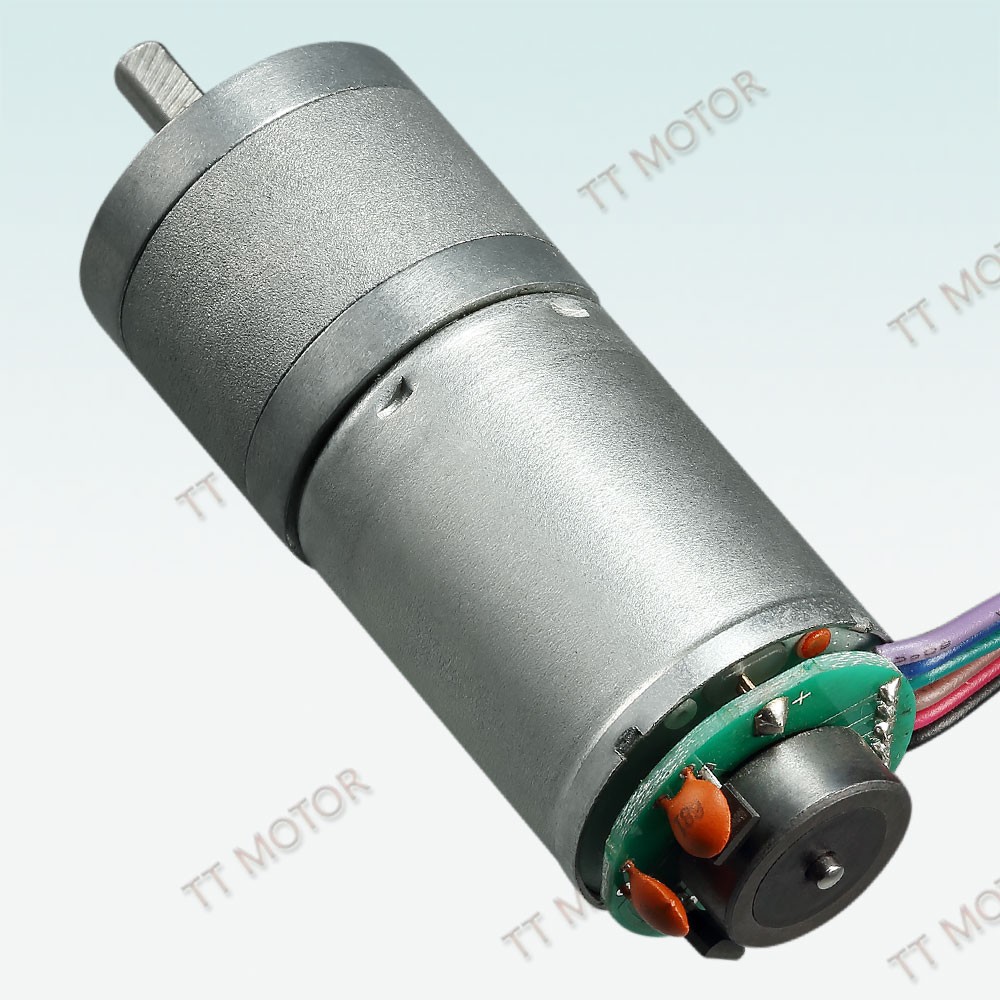

A: Yes, the DC gear motors can be matched with an encoder (11ppr) for precise speed and position control.
A: The motor is typically available in 6VDC and 12VDC configurations to suit different power requirements.
A: Absolutely. We offer a wide range of ratios from 4 up to 499, allowing you to optimize for either speed or torque.
A: Yes, it is designed for low noise applications, making it ideal for medical equipment and office business machines.
A: The gearbox is designed to handle a maximum momentary tolerance torque of up to 10 kg.cm depending on the reduction ratio.
