GMP36 555PM EN 12V 24V DC Geared Motor with Encoder for Global B2B Supply and Industrial Applications

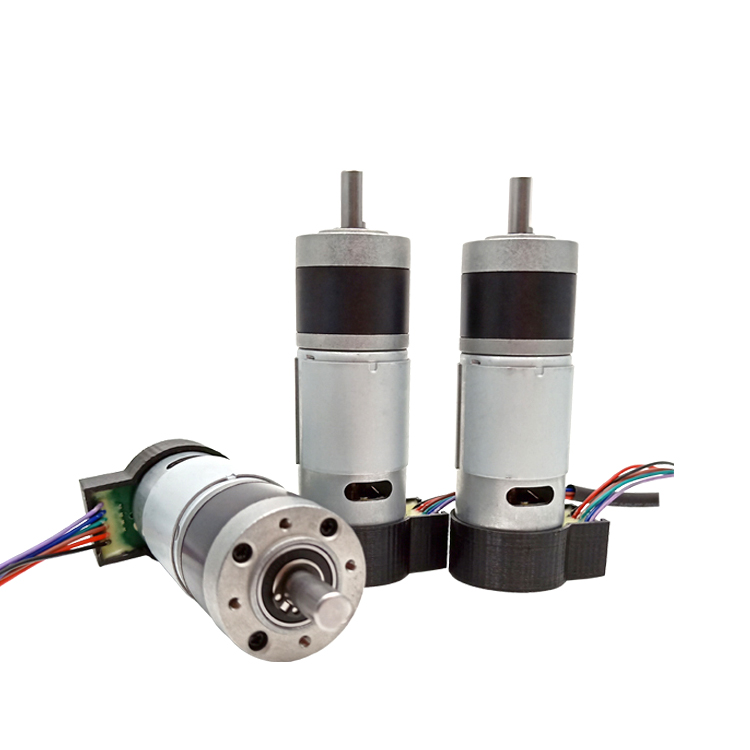

GMP36-555PM-EN 12 volt 24 volt electric dc geared motor with encoder

Main Features

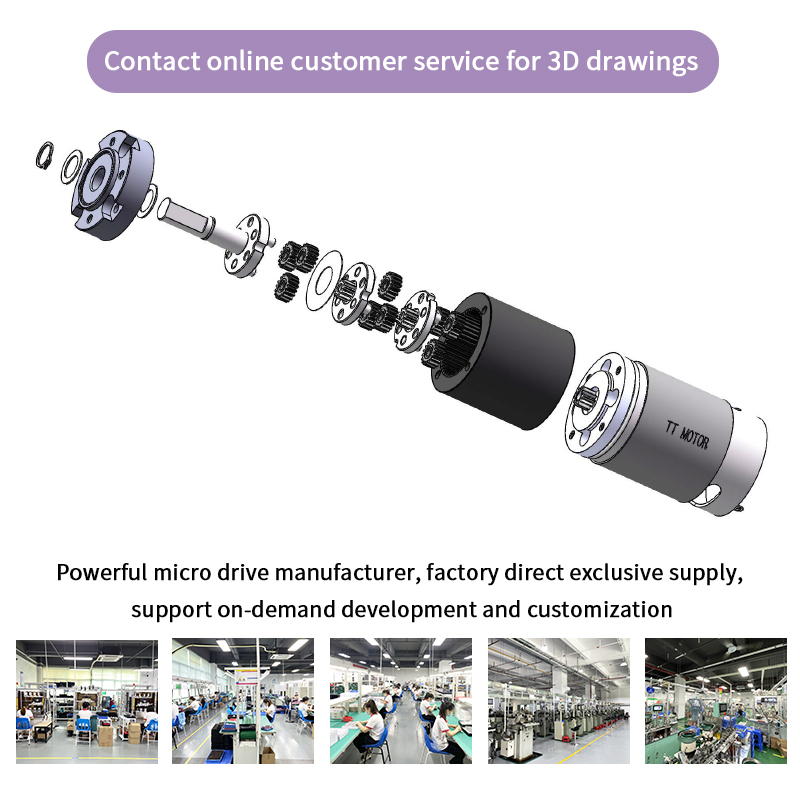

36mm Planetary reducer plus 3530,5 series of carbon brush motor and TEC3650 & 3640 brushless motor
Small size dc gear motor with low speed and big torque

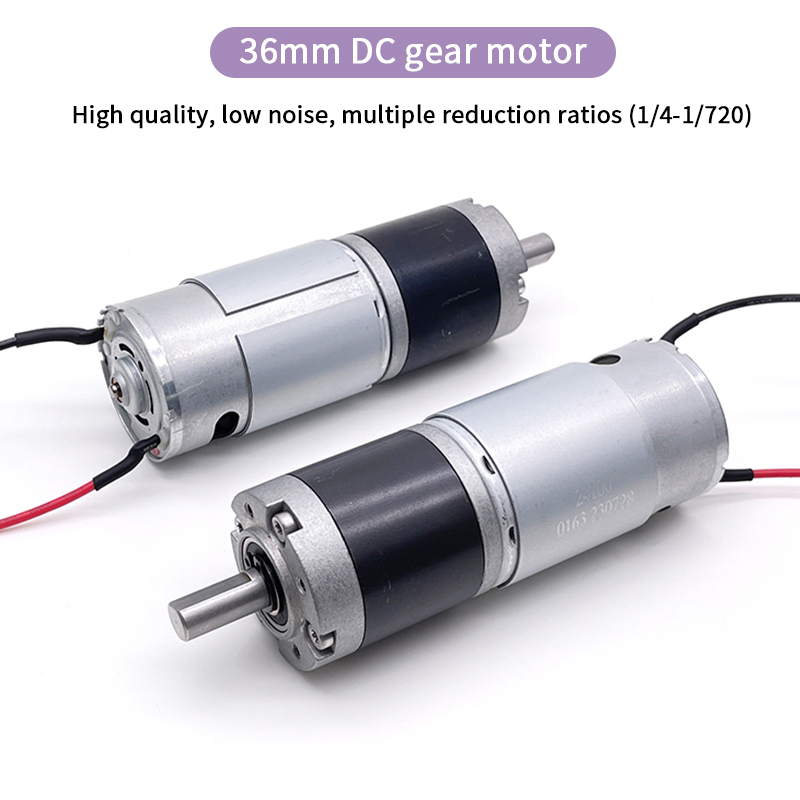

36mm gear motor provide 3.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

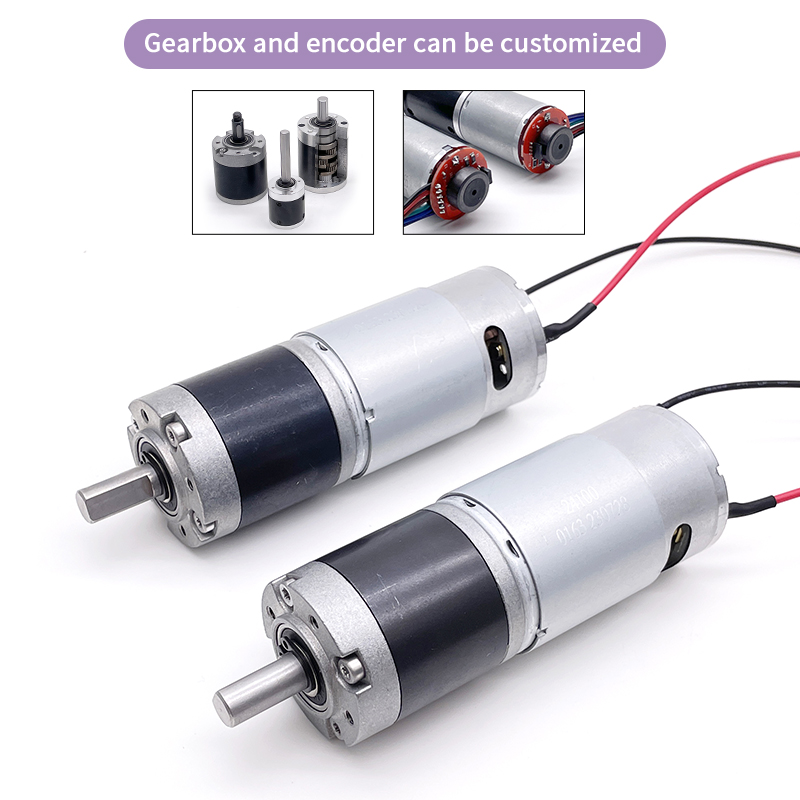

Dc Gear motors can match encoder, 11pr
Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

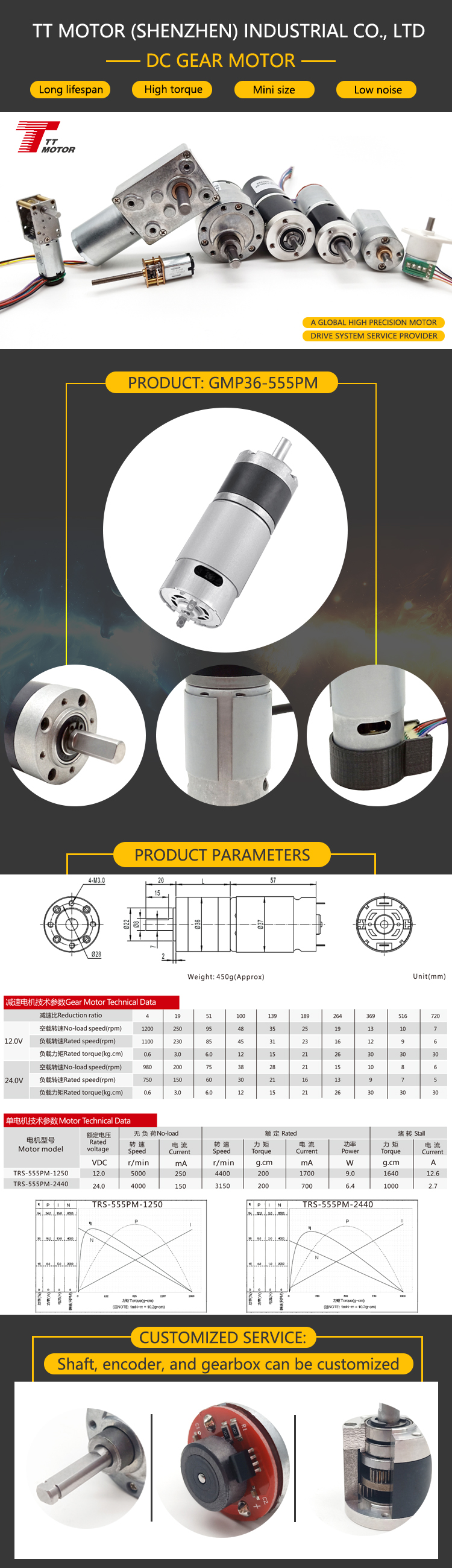

Model: Gear Motor GMP36-555PM

Model No.	Voltage & Speed Info	Torque & Power Info	Current Info
TTRS-555PM-1233	Rated voltage: 12VDC	Rated speed: 2800r/min	Output power: 5.7W
	No-load speed: 3300r/min	Rated torque: 200g.cm	Stall torque: 1150g.cm
	No-load current: 200mA	Rated current: 1000mA	Stall current: 5.5A
TTRS-555PM-1260	Rated voltage: 12VDC	Rated speed: 5250r/min	Output power: 16W
	No-load speed: 6000r/min	Rated torque: 290g.cm	Stall torque: 2200g.cm
	No-load current: 300mA	Rated current: 2400mA	Stall current: 15.0A
TTRS-555PM-2440	Rated voltage: 24VDC	Rated speed: 3150r/min	Output power: 6.4W
	No-load speed: 2400r/min	Rated torque: 200g.cm	Stall torque: 1000g.cm
	No-load current: 150mA	Rated current: 700mA	Stall current: 2.7A

GMP36-555PM-1233-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	750	160	60	32	23	17	12	9	6
Rated speed rpm	700	150	55	28	20	15	11	8	5.5
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max.momentary tolerance torque kg.cm	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	1400	300	110	55	42	32	23	16	11.5
Rated speed rpm	1300	275	100	50	38	28	20	15	10.5
Rated torque kg.cm	0.9	3.8	9	18	22	30	30	30	30
Max.momentary tolerance torque kg.cm	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	980	200	75	38	28	21	15	10	7.5
Rated speed rpm	750	155	60	30	21	16	13	9.5	7
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max.momentary tolerance torque kg.cm	3.2	13	25	50	60	70	70	70	70

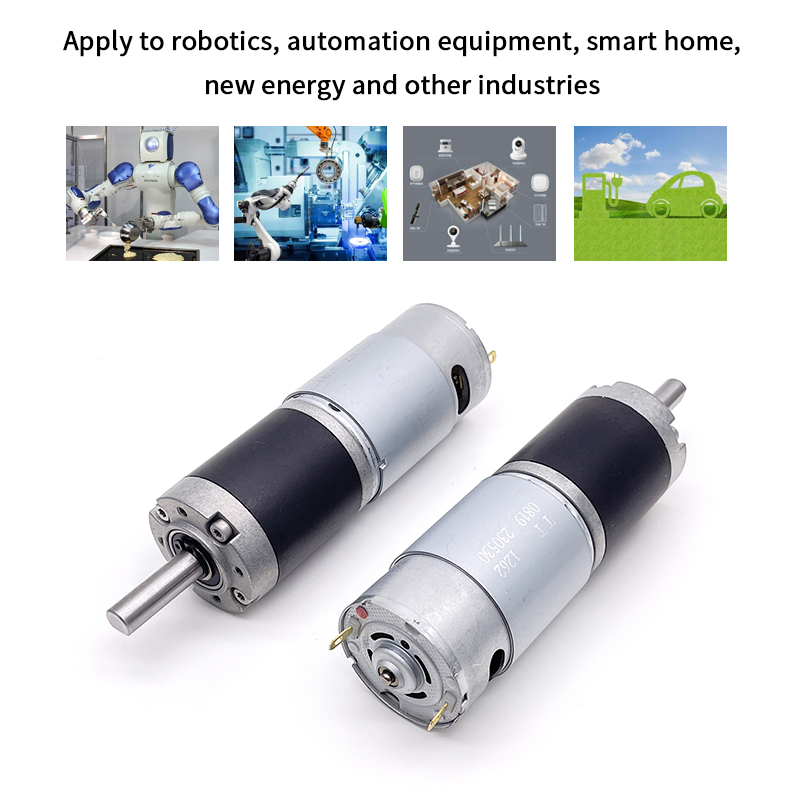

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Others Application

Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Company Overview

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing

Shipping time:

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on ship to which country
Sea: Depends on ship to which country

Our Customer Feedback

Excellent quality, better price, good service, and on time delivery.

Frequently Asked Questions

How to order?

Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

How about Sample order?

Samples are available for you. Please contact us for details. Once we charge you the sample fee, please rest assured that it will be refunded when you place a formal order.

Which shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping are available. Other shipping ways can also be arranged, please contact us if you need delivery by alternative methods.

How long is the delivery (producing) and shipping time?

Delivery time depends on the quantity you order. Usually, production takes about 15-25 working days.

My package has missing products. What can I do?

Please contact our support team and we will verify your order against the package contents. We apologize for any inconvenience caused.

How to confirm the payment?

We accept payment by T/T and PayPal. Other payment methods can also be accepted; please contact us before completing payment via alternative methods. A 30-50% deposit is accepted, with the balance to be paid before shipping.
