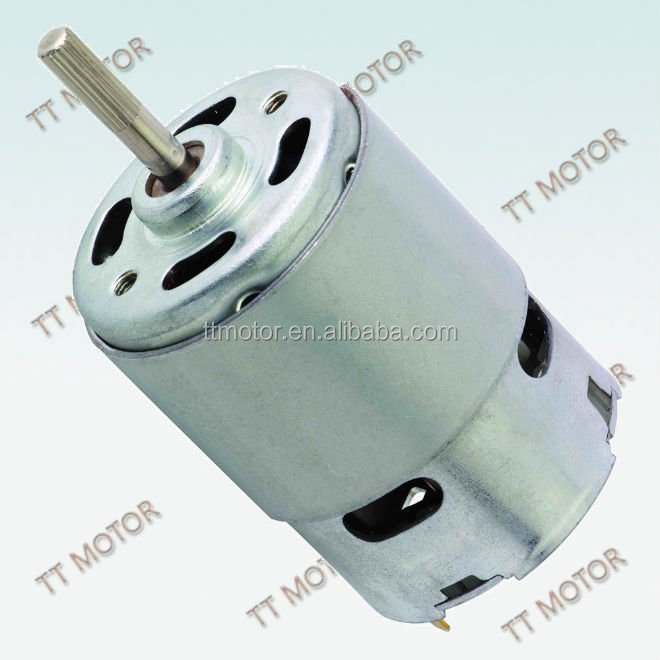

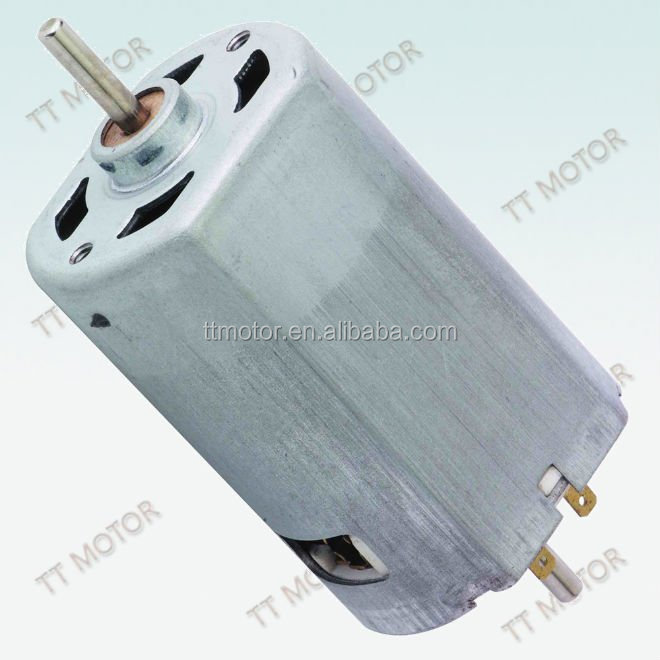

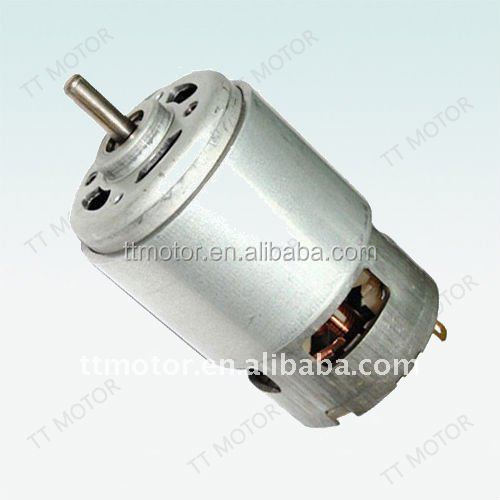

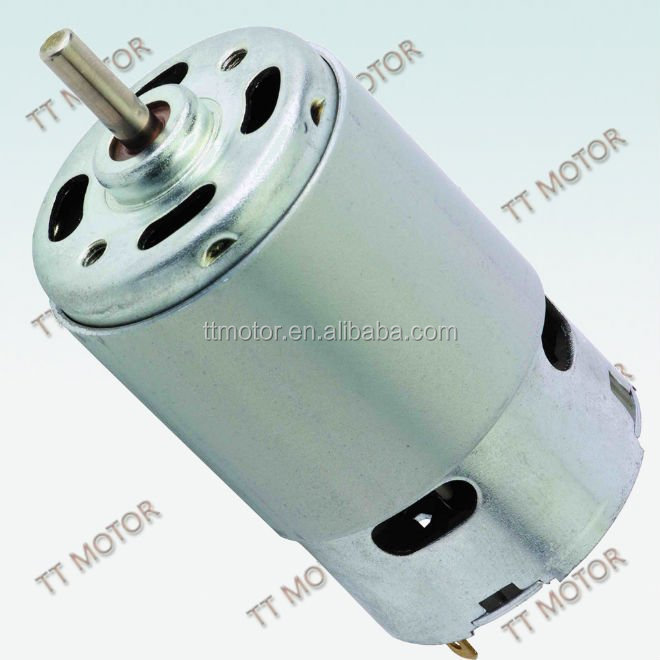

TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
1 / 5
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor

TRS-550PM or 24v Dc Motor

Send Inquiry

Product Description

24V DC Motor, TRS-550PM Specifications

Voltage 120V
Speed 18000 RPM
Torque 3512 g.cm
Key Features Low current, noise, no spark, no vibration
Typical Applications Ride-on Toy, Grass trimmer, Air Compressor, Drill
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mN.m g.cm w mN.m g.cm A
TRS-550PM 35100 3.0-18.0 12.0 5200 0.25 4330 1.60 29.41 300 13.3 176.47 1800 8.32
6530 6.0-12.0 12.0 18000 1.30 16100 7.15 41.18 420 69.0 344.31 3512 52.0
TRS-550PM or 24v Dc Motor

Frequently Asked Questions

What is the operating voltage range for the TRS-550PM motor?
Depending on the specific variant, the operating voltage range is 3.0V - 18.0V for the TRS-550PM-35100 model and 6.0V - 12.0V for the TRS-550PM-6530 model, with both nominal voltages rated at 12.0V.
What are the main advantages of using this DC motor?
The TRS-550PM motor features low current consumption, low operational noise, spark-free performance, and minimal vibration, ensuring long-term reliability.
What are the typical applications for this motor?
This motor is widely used in high-torque consumer products such as ride-on toys, grass trimmers, portable air compressors, and power drills.
How does the motor perform under maximum efficiency?
At maximum efficiency, the 35100 model outputs 13.3W of power at 4330 RPM with 29.41 mN.m of torque, while the 6530 model delivers 69.0W at 16,100 RPM with 41.18 mN.m of torque.
What is the maximum torque and stall capacity of the TRS-550PM?
The TRS-550PM-6530 has a stall torque of 3512 g.cm (344.31 mN.m) at a current draw of 52.0A. The TRS-550PM-35100 variant features a stall torque of 1800 g.cm (176.47 mN.m) at 8.32A.
