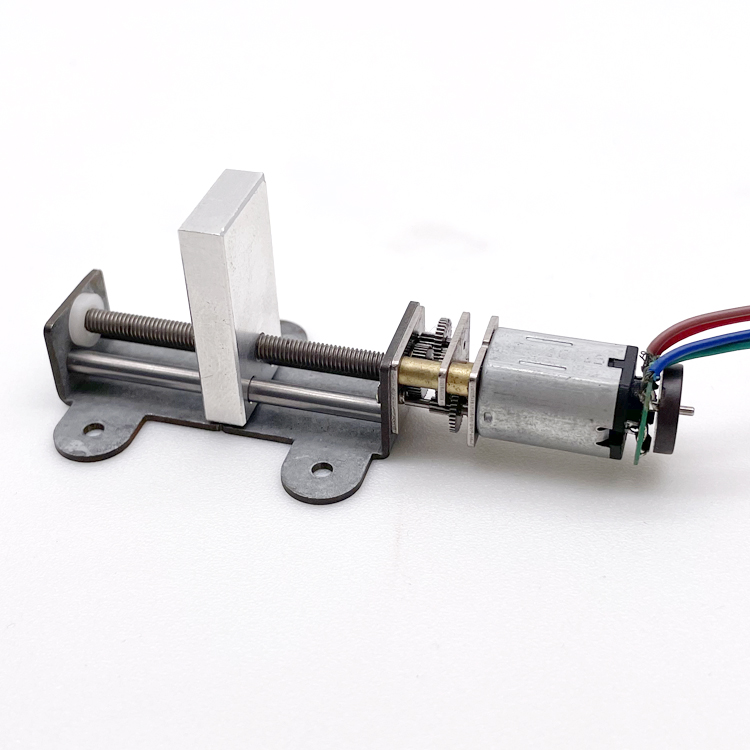

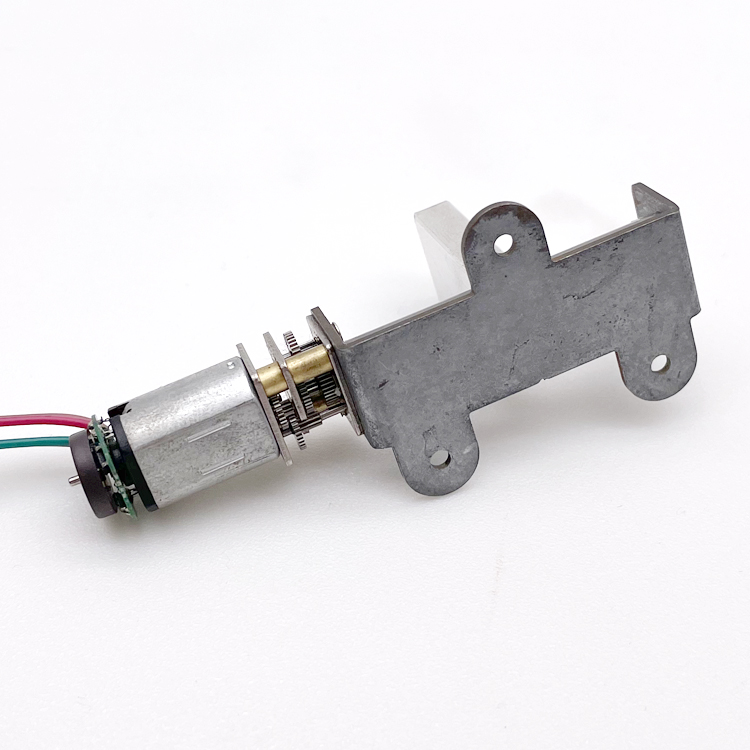

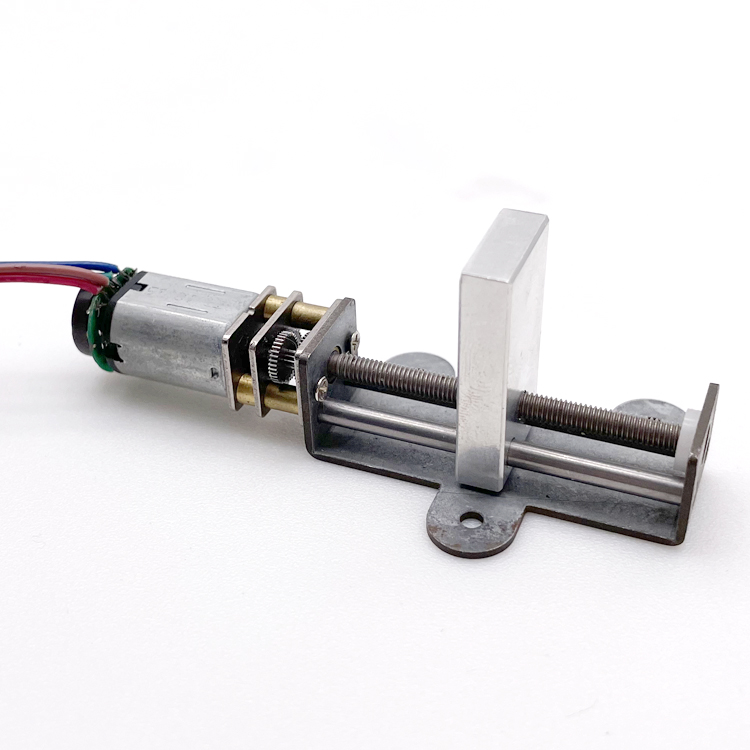

12V Electric Gear Motor TT Motor GM12-N20VA 1000 Ratio High Torque Spur Gear Motor for Industrial B2B Procurement

Product Description

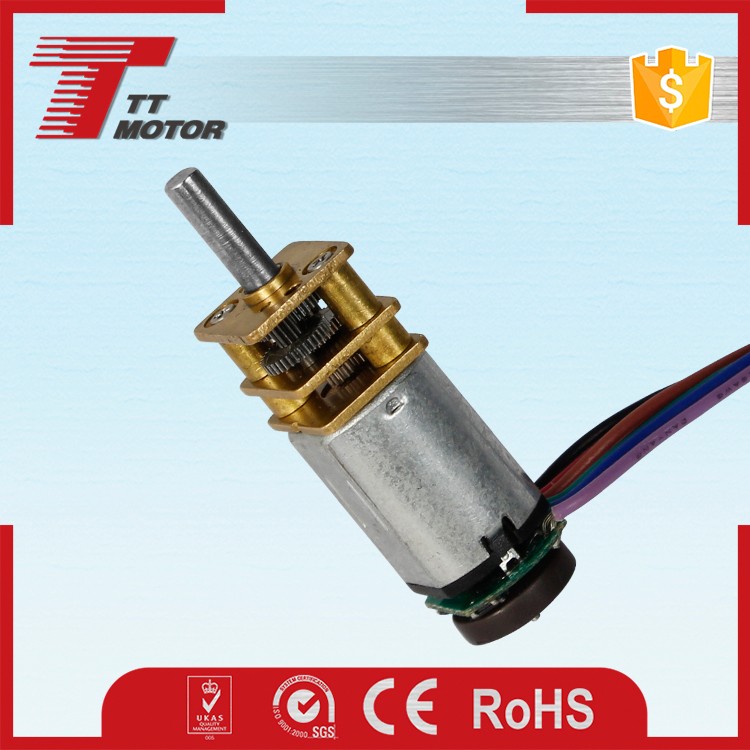

3v dc mini gear motor 12mm electric motor with encoder

Main Features

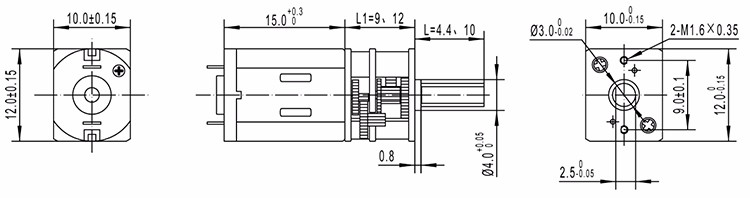

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

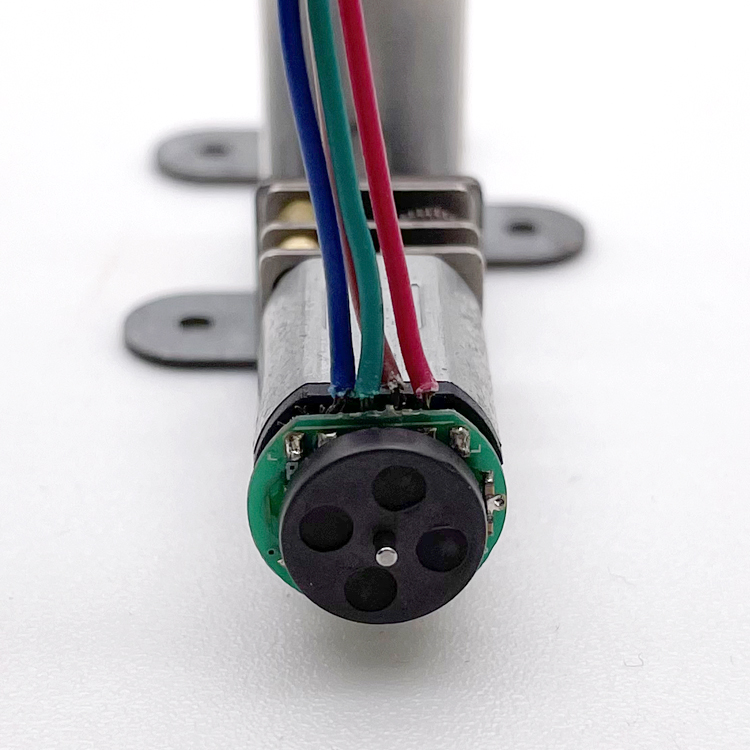

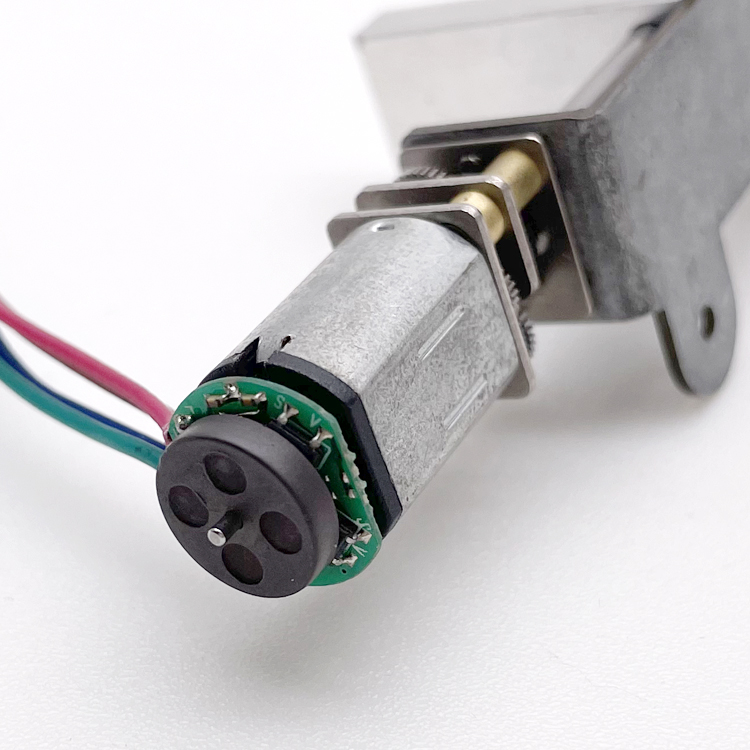

DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Specifications

Model: Motor GM12-N20VA

Motor Model	Voltage Specs	Speed Specs	Power & Torque
TFF-N20VA-13110	Rated voltage: 2.4V DC	Rated speed: 12000r/min	Output power: 0.31W
	No-load speed: 14800r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 60mA	Rated current: 200mA	Stall current: 1.20A
TFF-N20VA-09220	Rated voltage: 5V DC	Rated speed: 12200r/min	Output power: 0.31W
	No-load speed: 15000r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 30mA	Rated current: 120mA	Stall current: 0.6A
TFF-N20VA-05430	Rated voltage: 12V DC	Rated speed: 12500r/min	Output power: 0.35W
	No-load speed: 16000r/min	Rated torque: 3.0g.cm	Stall torque: 13g/cm
	No-load current: 15mA	Rated current: 60mA	Stall current: 0.25A

GM12-N20VA-13110-EN Parameters

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-EN Parameters

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1480	490	290	150	98	70	60	50	38
Rated speed rpm	1220	405	245	122	81	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-EN Parameters

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

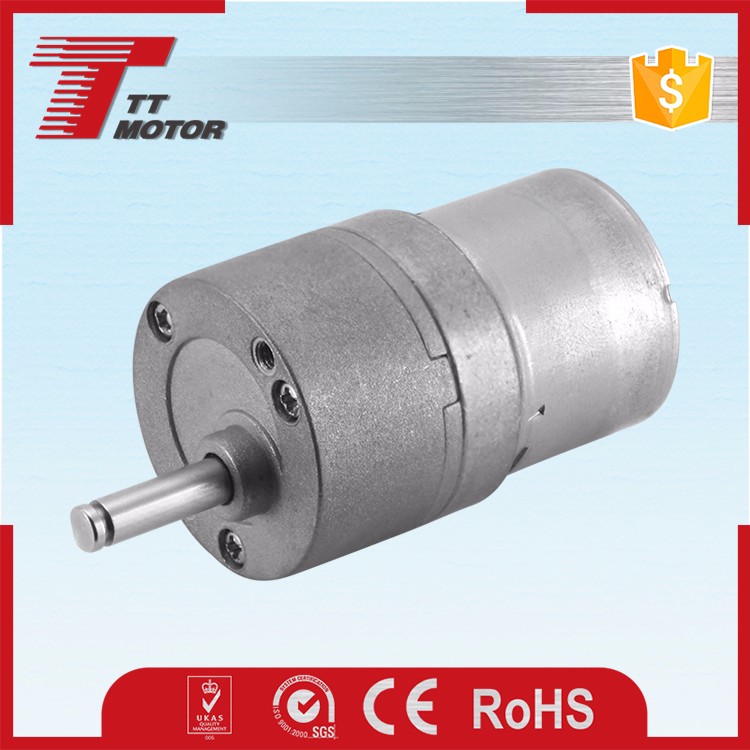

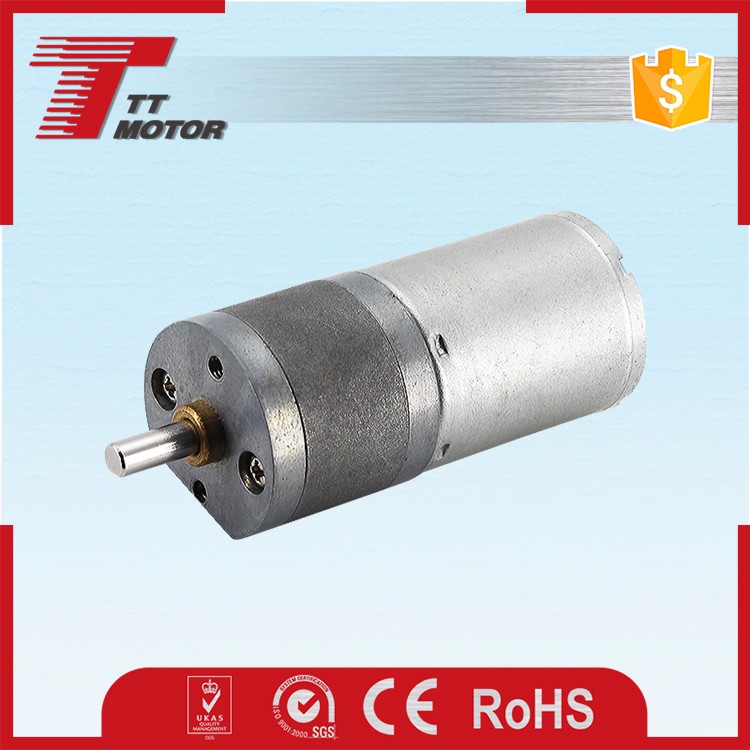

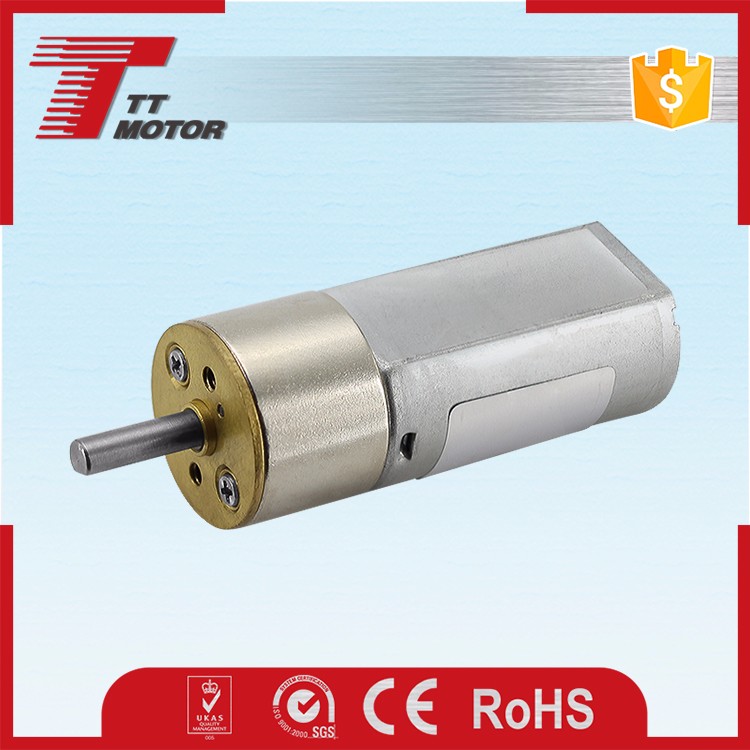

Related Products

Packing & Delivery

Packaging: single carton packing, 500 pieces per box.

Shipping Options:

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea Shipping: Depends on destination country

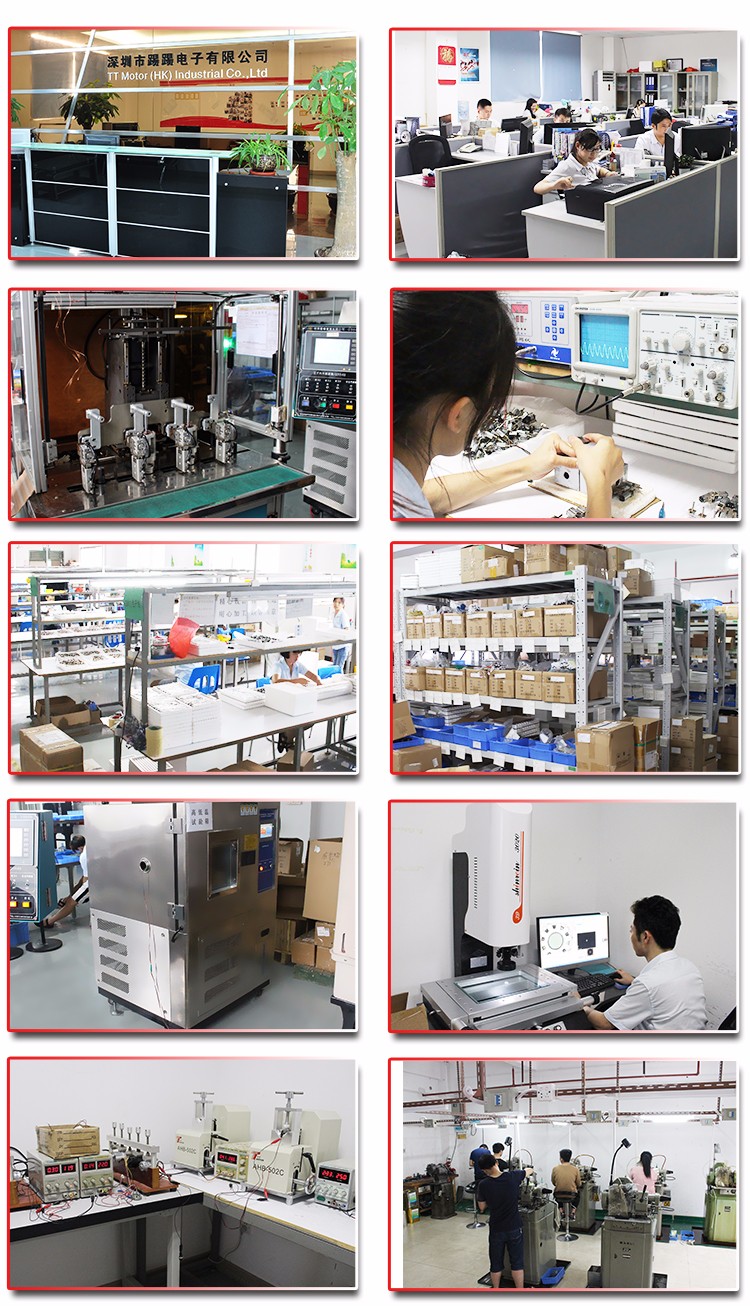

About Our Micro Motor Operations
