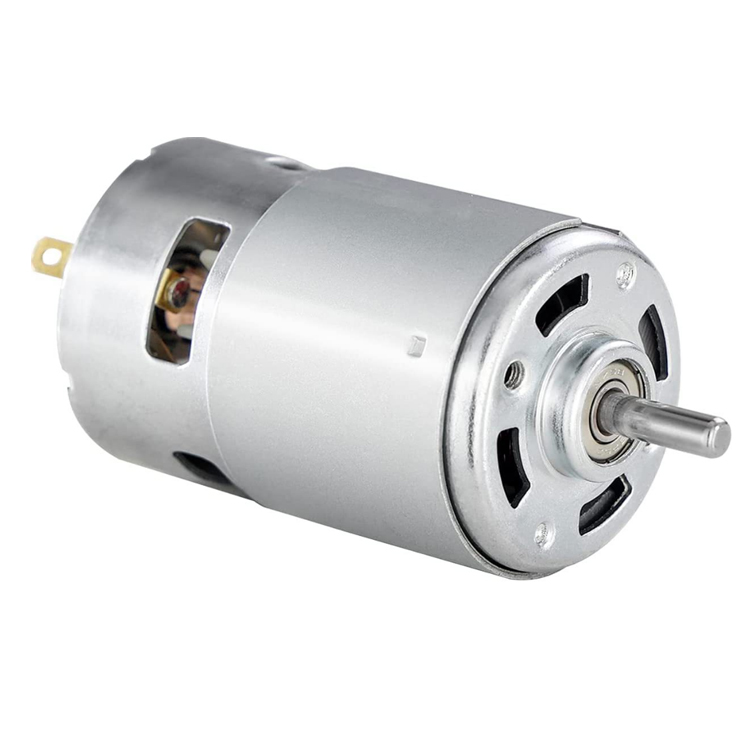

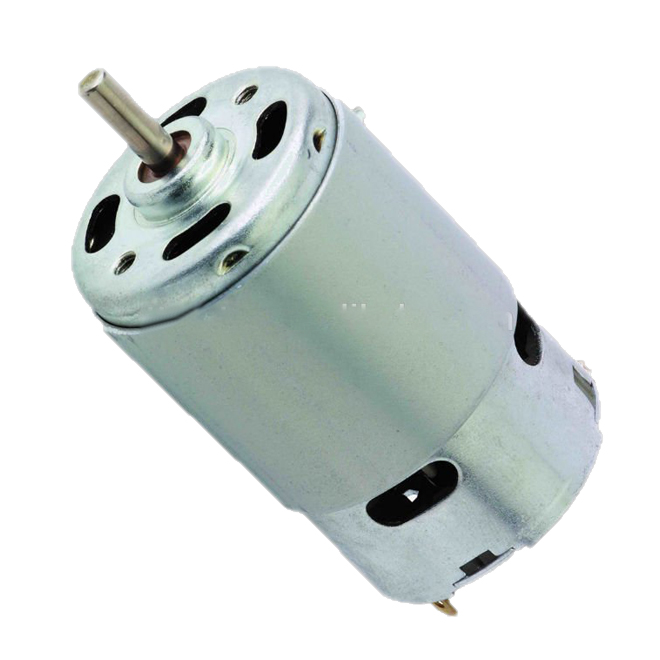

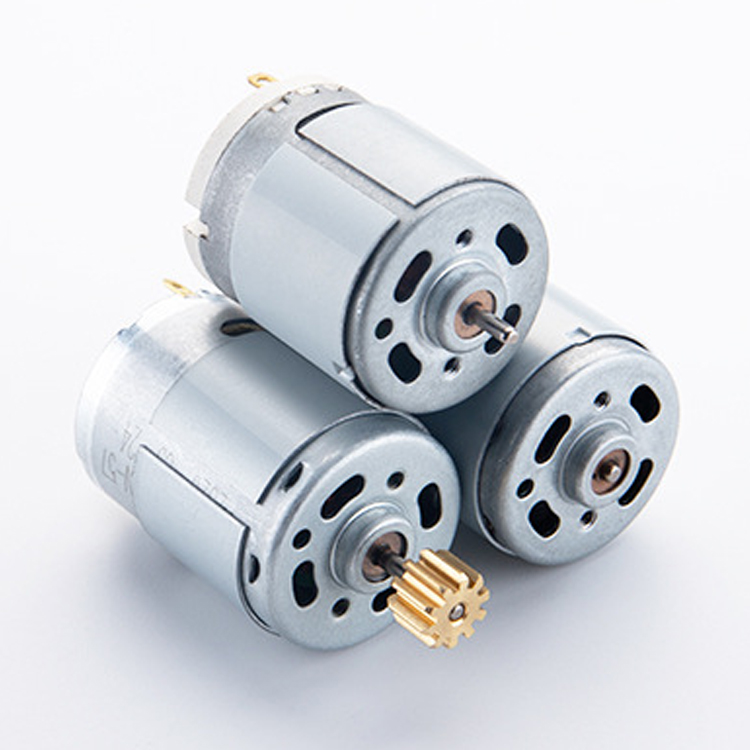

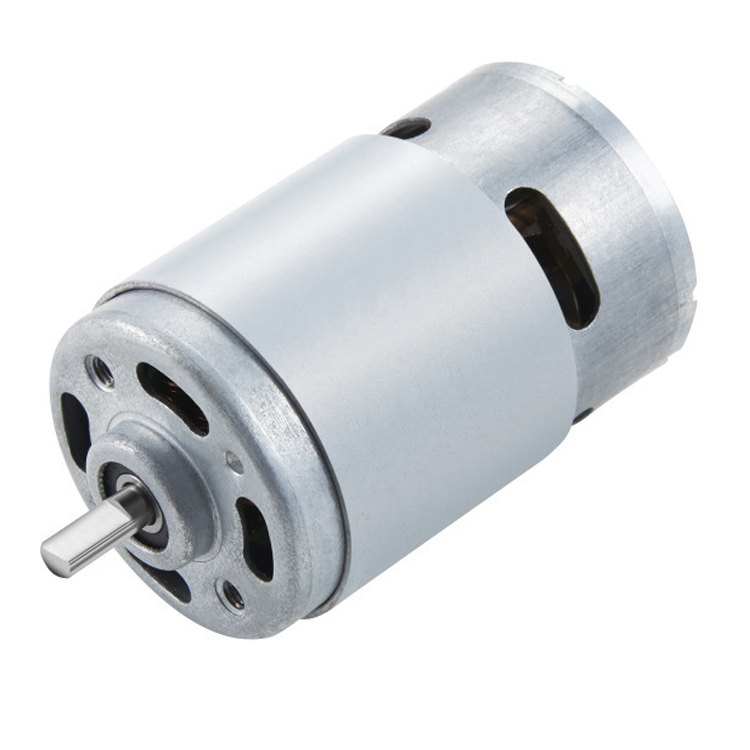

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
1 / 5
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor

Send Inquiry

Product Description

High RPM RS-555 and RS-775 DC Motor 12V 24V Brushed Motor

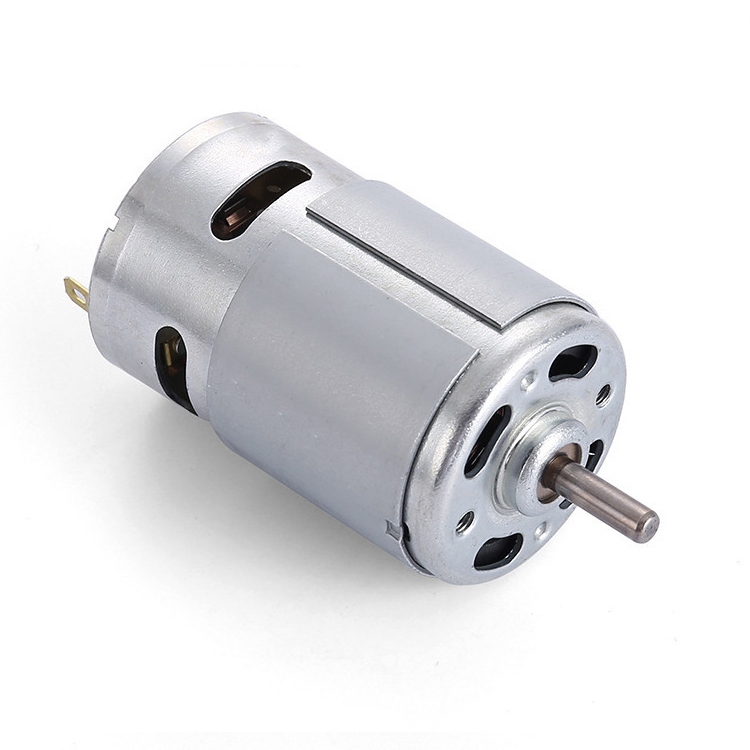

RS-555 and RS-775 DC Motor 1
RS-555 and RS-775 DC Motor 2
RS-555 and RS-775 DC Motor 3

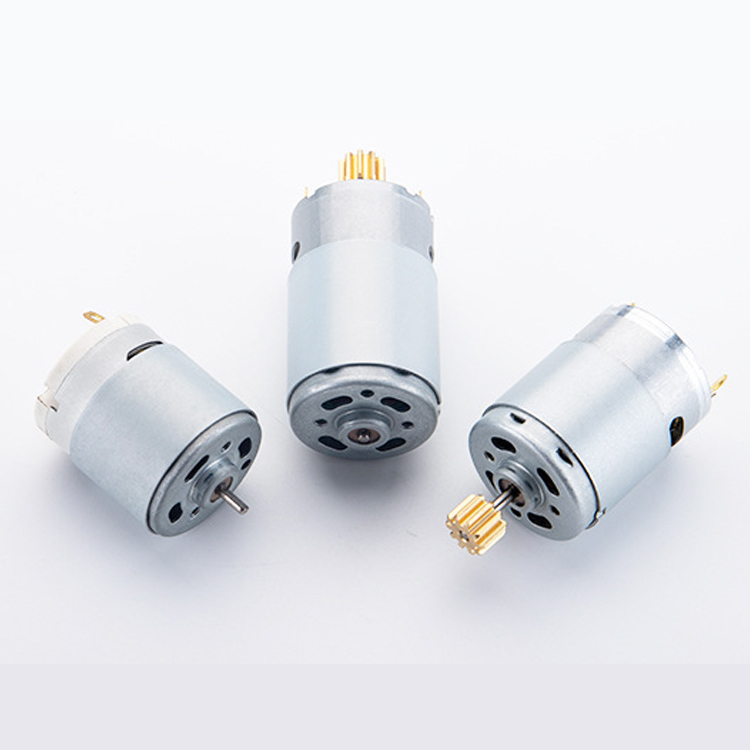

RS-555 and RS-775 DC Motor 4
⚙️
Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
⚡
Performance: High efficiency, less noise, and low current consumption 24V DC motor technology.
🧩
Compatibility: Can match with 45mm planetary gearbox or 51mm gear box for varied torque requirements.
📏
Shaft Details: 5.0mm diameter shaft with available lengths of 14.5mm or 19.5mm.
🛠️
Installation: Mounting holes designed for 2-M4.0x0.7 specifications.
🔢
Encoder Support: Features a double shaft design suitable for encoders (12ppr).
🧪
Sampling: Sample units can be provided for your specific application testing.
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A mN.m g.cm w mN.m g.cm A
TRS-775PM 2765 6.0-30.0 24.0 7600 0.37 5810 0.22 73.53 750 44.7 312.35 3186 8.23
4045 6.0-15.0 12.0 4600 0.60 3500 4.30 84.31 860 36.6 352.94 3600 16.1

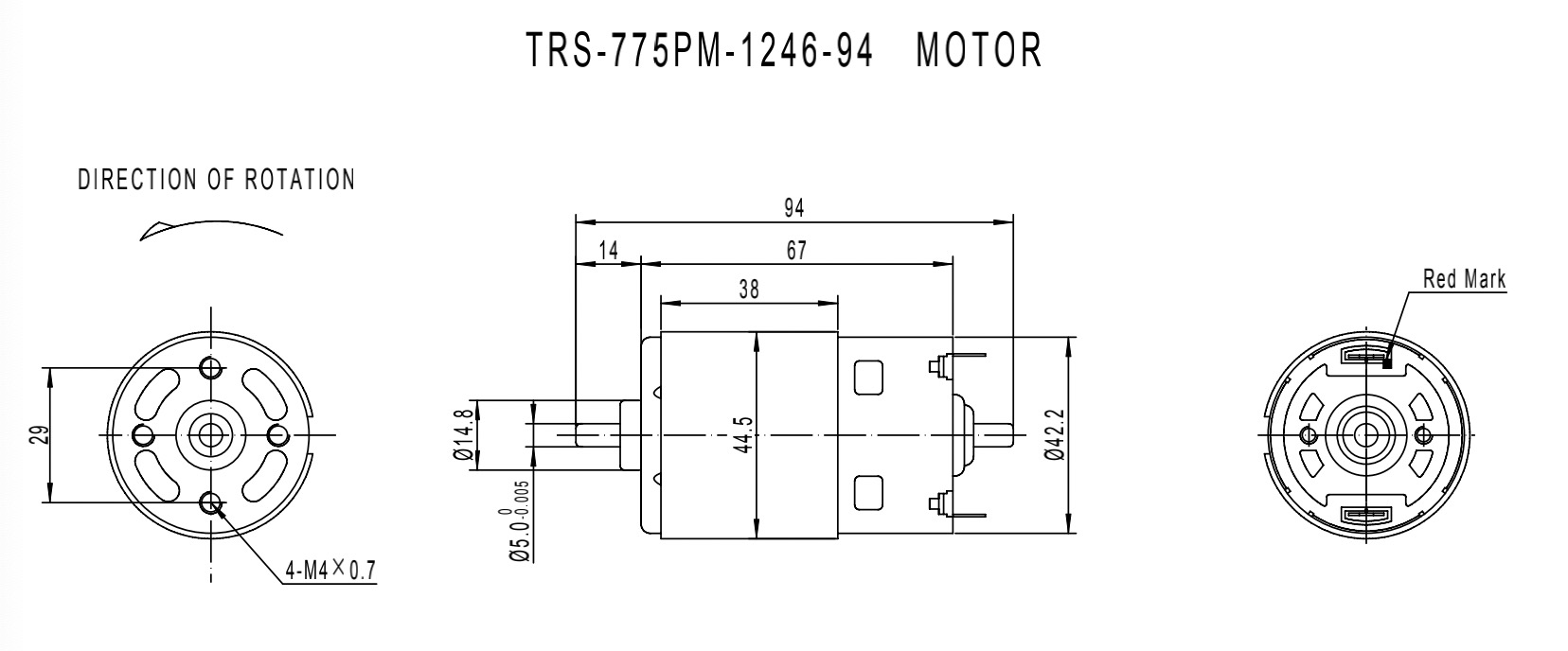

Motor Technical Drawing

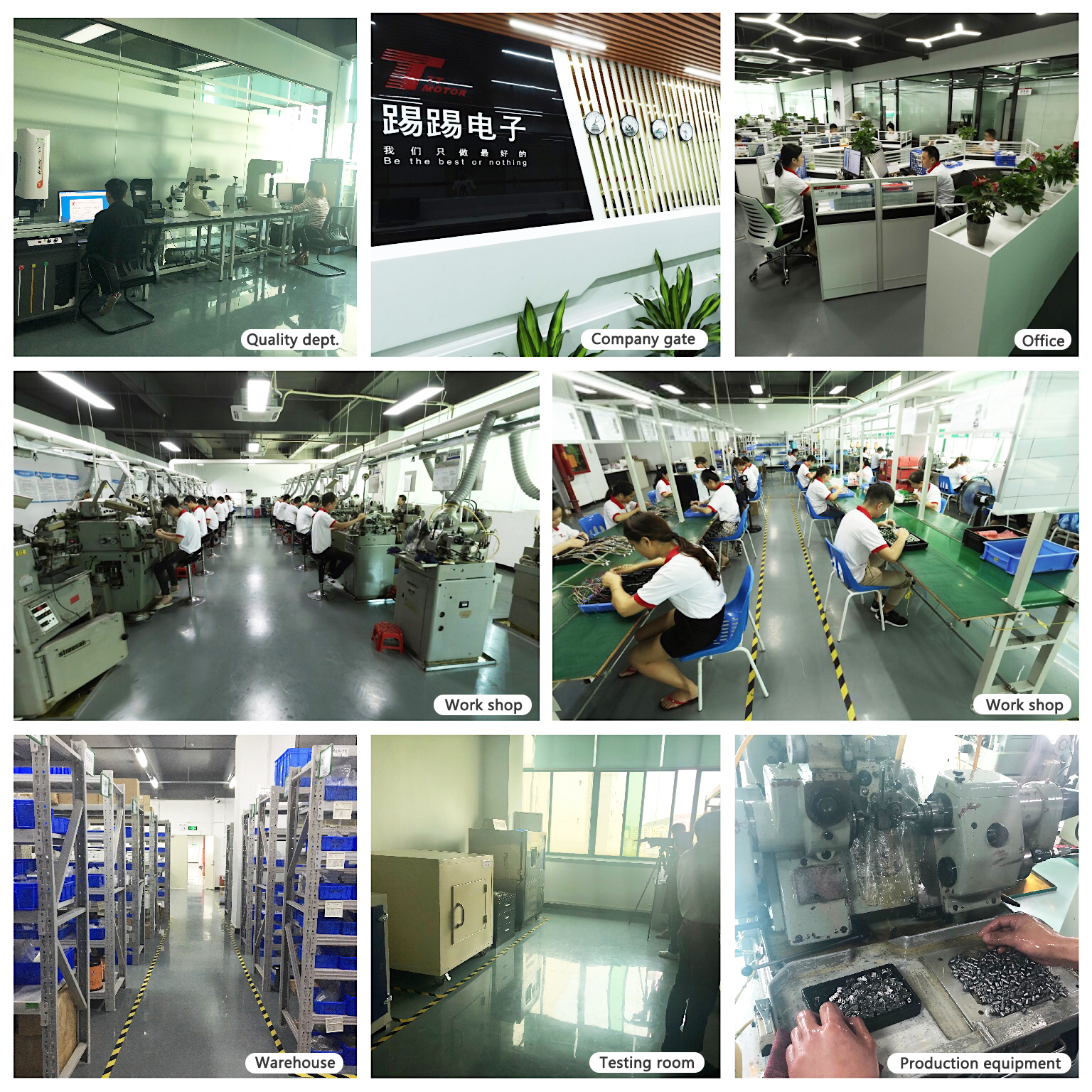

Production Facility 1
Production Facility 2
Frequently Asked Questions
1. What are the main applications for the RS-555 and RS-775 motors?
These motors are versatile and commonly used in office equipment like printers and copy machines, household appliances such as sewing machines and hair dryers, as well as industrial tools like circular saws and string trimmers.
2. What voltage options are available for these DC brushed motors?
The motors are designed for 12V and 24V DC operation. The TRS-775PM model features an operating range from 6.0V up to 30.0V depending on the specific winding configuration.
3. Can these motors be integrated with gearboxes?
Yes, these motors are compatible with 45mm planetary gearboxes or 51mm gearboxes, allowing for increased torque and speed reduction for specific mechanical needs.
4. What are the physical shaft specifications?
The motors come with a 5.0mm diameter shaft. Standard shaft lengths provided are 14.5mm and 19.5mm to accommodate different mounting requirements.
5. Does the motor support speed or position feedback?
Yes, we offer a double shaft version specifically designed for encoder attachment, supporting 12ppr (pulses per revolution) for precise control.
6. Are samples available for testing before bulk orders?
We provide sample units for performance verification and testing to ensure the motor meets your specific application requirements.
